BRAND GMBH + CO.KG

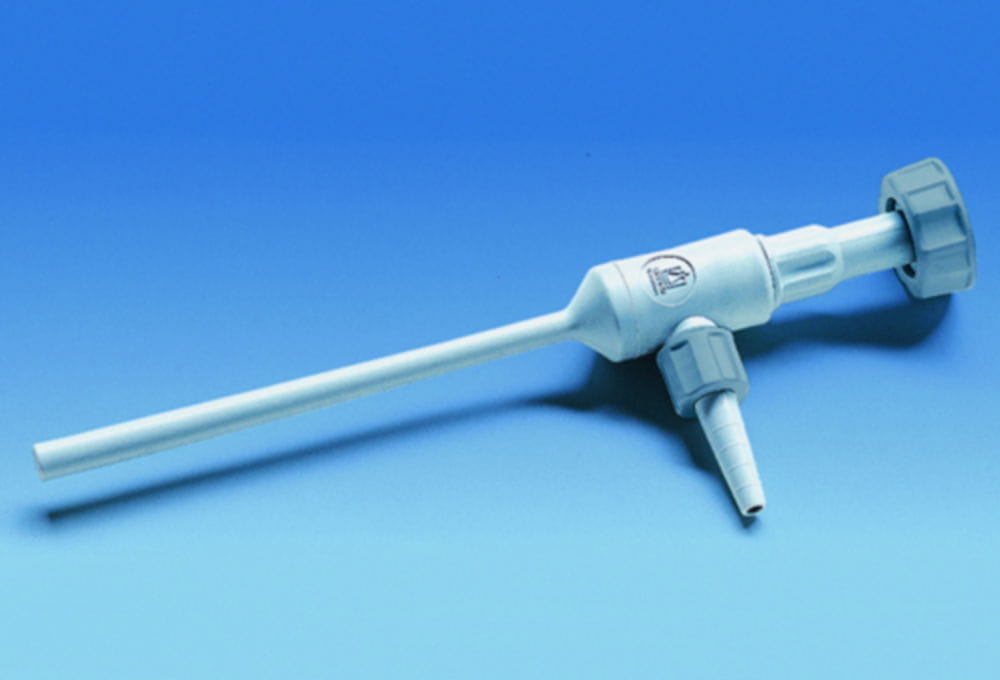

Water jet pumps, PP
Article number: 9303125
Product information "Water jet pumps, PP"
With constant ultimate vacuum, high suction flow rate and very low water consumption. Can be connected to mains water system in a number of different ways using the adapter supplied and reducing adapters that are available as accessories. For continuous use at temperatures up to 80°C max. High chemical resistance as the media being pumped only comes into contact with PP, FKM and PTFE. Integral non-return valve increases safety.
Comprises: Water jet pump, including:
Mains water connections: R ¾" sleeve nut, R ½" reducing adapter and flexible tubing connection (nozzle) with external diameter from 10mm to 12mm.
Vacuum connection: Detachable nozzle with external diameter from 6mm to 9mm and GL 14 screw cap.
Comprises: Water jet pump, including:
Mains water connections: R ¾" sleeve nut, R ½" reducing adapter and flexible tubing connection (nozzle) with external diameter from 10mm to 12mm.
Vacuum connection: Detachable nozzle with external diameter from 6mm to 9mm and GL 14 screw cap.
Performance characteristics at 3.5 bar water supply pressure at 12°C | |
Water consumption: | 190L/hr. |
Ultimate vacuum: | 16 mbar |
Flow rate at atmospheric pressure: | 400L/hr. free air |
Dual Use: | 0 |
---|---|
Enddruck: | 16 mbar |
Manufacturer Article Number: | 159600 |
Material: | PP |
Max. temperature: | 80 °C |
Wasserverbrauch: | 220 l/h |
