Gardner Denver Thomas GmbH

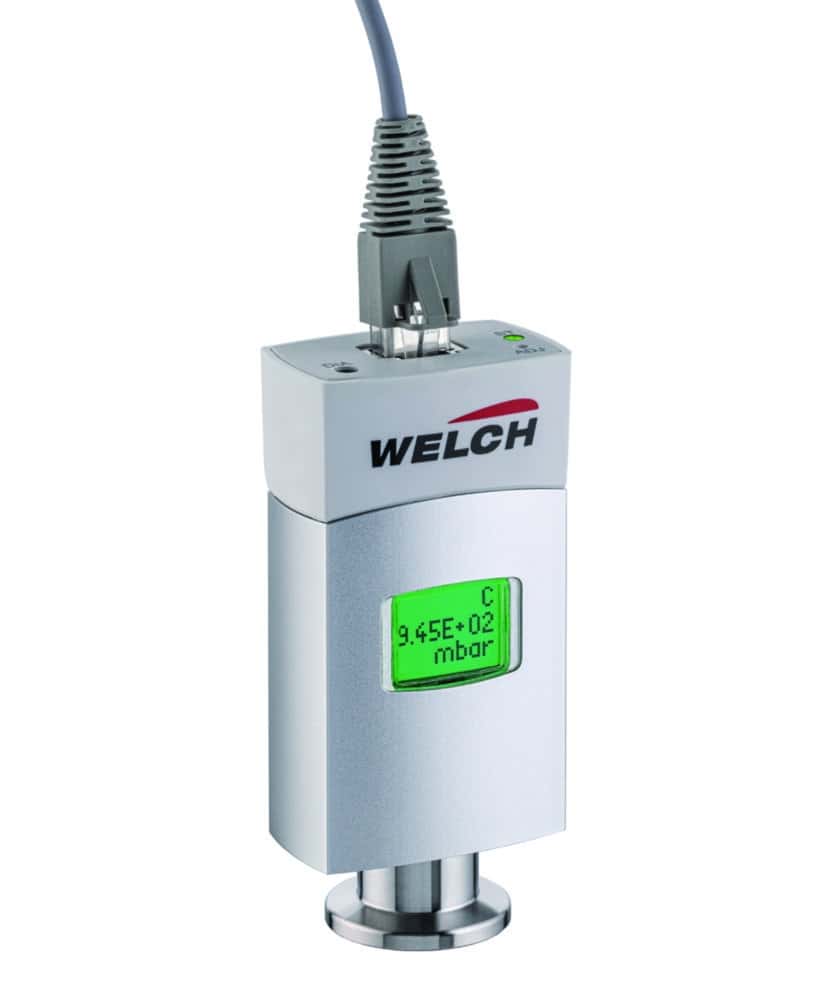

Vacuum gauge VMpro 2
Article number: 6316263
Product information "Vacuum gauge VMpro 2"
The chemical-resistant vacuum gauge VMpro 2 combines Pirani technology with a ceramic capacitance diaphragm sensor and thus provides gas-type-independent, highly accurate values for reliable pressure measurement in the measuring range between 10 mbar and atmospheric pressure. The digital display ensures easy monitoring of the vacuum and shows the current measuring principle.
Scope of supply: Vacuum gauge VMpro 2, AC/DC power adapter with EU and UK plug adapters, connection cable
Scope of supply: Vacuum gauge VMpro 2, AC/DC power adapter with EU and UK plug adapters, connection cable
Specifications | |
Measuring range: | 1500 ... 5 x 10-5 mbar |
Accuracy: | 5 x 10-4 ... 1 x 10-3 mbar ±50 % / 1 x 10-3 ... 100 mbar±15 % / 100 ... 950 mbar ±5 % / 950 ...1050 mbar ±2,5 % |
Reproducibility: | 1 x 10-3 ... 1100 mbar ±2 % |
Max. pressure: | 10 bar |
Vacuum connection: | DN 16 KF |
Permissible ambient temperature: | 10 ... 50 °C |
Max. ambient humidity: | 65 % |
Dimensions (W x D x H): | 159 x 45 x 28 mm |
Weight: | 120 g |
Power supply: | 100 ... 240 V, 50/60 Hz |
Dual Use: | 0 |
---|---|
Manufacturer Article Number: | 600094 |
Type: | VMpro 2 |
