Memmert GmbH + Co. KG

Universal ovens UN

Article number: 9869681

€1,241.00*

Packaging unit: 1 piece

* Prices excl. VAT plus shipping costs

on order

Depth int.

250 mm

330 mm

400 mm

500 mm

600 mm

Ext. depth

434 mm

514 mm

584 mm

684 mm

784 mm

Ext. height

704 mm

784 mm

864 mm

944 mm

1104 mm

1183 mm

1247 mm

1720 mm

Ext. width

585 mm

745 mm

824 mm

1224 mm

External dimensions (WxDxH)

1,224 x 784 x 1247 mm

1,224 x 784 x 1720 mm

585 x 434 x 704 mm

585 x 514 x 784 mm

585 x 514 x 944 mm

745 x 584 x 864 mm

745 x 584 x 1104 mm

824 x 684 x 1183 mm

Height int.

320 mm

400 mm

480 mm

560 mm

720 mm

800 mm

1200 mm

Int. width

400 mm

560 mm

640 mm

1040 mm

Internal dimensions (WxDxH)

1,040 x 600 x 720 mm

1,040 x 600 x 1200 mm

400 x 250 x 320 mm

400 x 330 x 400 mm

400 x 330 x 560 mm

560 x 400 x 480 mm

560 x 400 x 720 mm

640 x 500 x 800 mm

Manufacturer Article Number

UN30

UN55

UN75

UN110

UN160

UN260

UN450

UN750

Max. no. of inserts

Max. voltage

230 V

400 V

Nominal capacity

32 l

53 l

74 l

108 l

161 l

256 l

449 l

749 l

Power supply

230 V, 50/60 Hz

400 V, 50/60 Hz

Rated capacity

1600 W

2000 W

2500 W

2800 W

3200 W

3400 W

5800 W

7000 W

Type

UN30

UN55

UN75

UN110

UN160

UN260

UN450

UN750

Weight

45 kg

57 kg

66 kg

74 kg

96 kg

110 kg

161 kg

217 kg

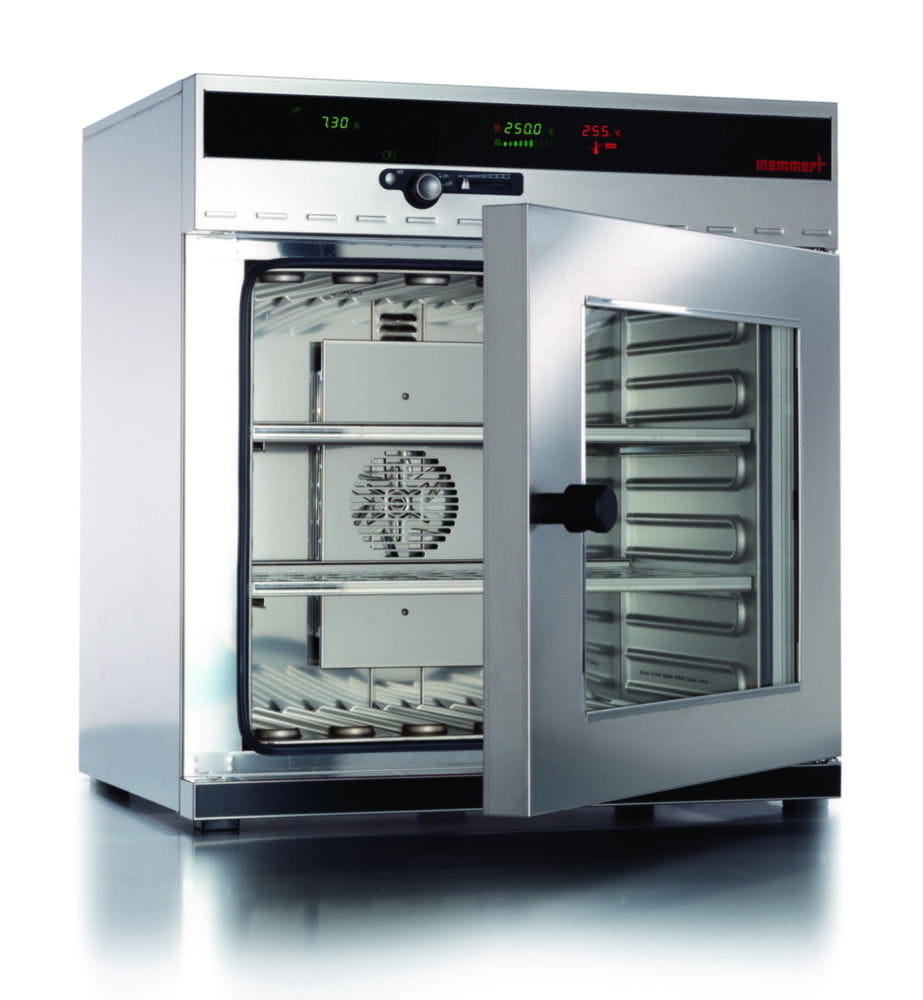

Product information "Universal ovens UN"

The all-round genius among heating ovens covers a multitude of applications, ideally at temperatures above 50 °C. The fresh air is preheated in the pre-heating chamber to avoid temperature fluctuations.

Natural convection

SingleDISPLAY: ControlCOCKPIT with one colour display
You can find a detailed description of the "SingleDISPLAY" model at www.memmert.com

Depth int.:	250 mm
Ext. depth:	434 mm
Ext. height:	704 mm
Ext. width:	585 mm
External dimensions (WxDxH):	585 x 434 x 704 mm
Height int.:	320 mm
Int. width:	400 mm
Internal dimensions (WxDxH):	400 x 250 x 320 mm
Manufacturer Article Number:	UN30
Material interior:	Stainless steel 1.4301
Max. no. of inserts:	3
Max. temperature:	300 °C
Max. voltage:	230 V
Min. temperature:	+5 °C
Nominal capacity:	32 l
Power supply:	230 V, 50/60 Hz
Power supply frequency:	50/60 Hz
Rated capacity:	1600 W
Temperature:	RT+5 ... 300 °C
Temperature addition:	RT
Type:	UN30
Type of auxiliary energy:	Mains connection
UNSPSC:	41104510
Weight:	45 kg
With timer:	Yes
