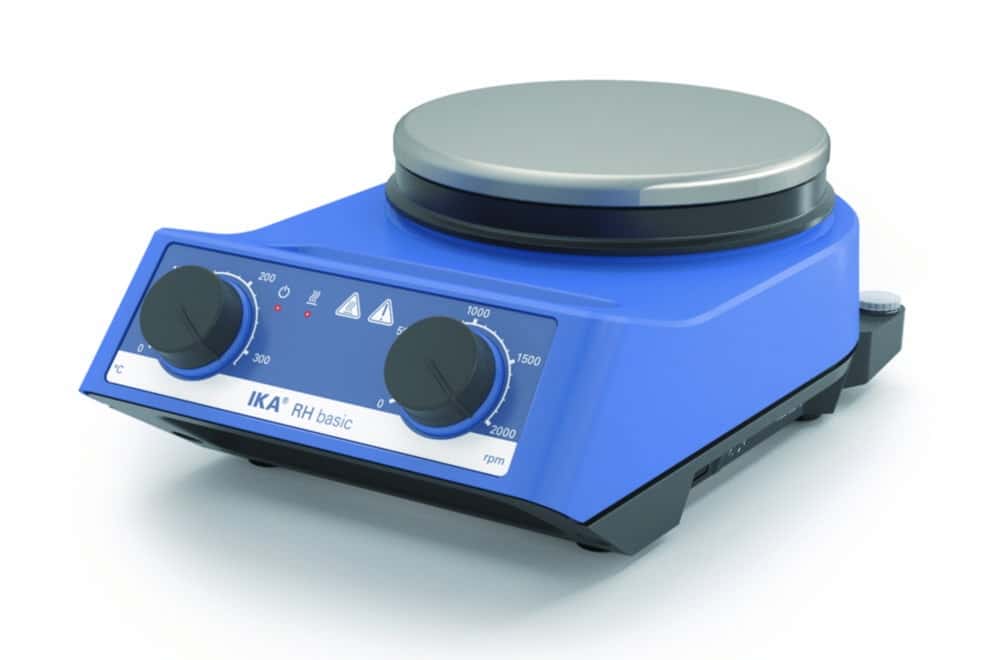

Magnetic stirrers RH basic
Article number: 9720411
Product information "Magnetic stirrers RH basic"
Economic magnetic stirrer with heating. Bushing according to DIN 12878 for connecting an electronic contact thermometer, such as the ETS-D5. Highly accurate temperature control is possible with the sensor placed directly in the medium. High heat output of 600 watts ensures rapid heating. Adjustable safety temperature from 100 to 360 °C.
Soft-start stirring motor
Includes M 10 thread for a support rod
Strong magnetic field and wide speed range for volumes up to 15 litres.
With stainless steel compound hot plate, which ensures rapid heating.
Colour housing: | Blue |
---|---|
Depth: | 246 mm |
Dimensions (WxDxH): | 160 x 246 x 90 mm |
Display: | Analogue |
Heating capacity: | 600 W |
Heating temperature: | 50 ... 320 °C |
Height: | 90 mm |
IP code: | IP 21 |
Manufacturer Article Number: | 0005019700 |
Material stirring surface: | Stainless steel 1.4301 |
Max. heating rate: | 6 °C/min |
Max. heating temperature: | 320 °C |
Max. permitted ambient temperature: | 40 °C |
Max. relative humidity rate: | 80 % |
Max. safety temperature: | 360 °C |
Max. speed: | 2000 1/min |
Max. stirring capacity: | 15 l |
Max. voltage: | 230 V |
Min. heating temperature: | 50 °C |
Min. permitted ambient temperature: | 5 °C |
Min. safety temperature: | 100 °C |
Min. speed: | 100 1/min |
No. of stirring positions: | 1 |
Permitted ambient temperature: | 5 ... 40 °C |
Plug type: | EU |
Power supply: | 230 V, 50/60 Hz |
Power supply frequency: | 50/60 Hz |
Safety temperature: | 100 ... 360 °C |
Speed: | 100 ... 2000 1/min |
Type: | RH basic |
Type of auxiliary energy: | Mains connection |
UNSPSC: | 41103806 |
Weight: | 3135 g |
Width: | 160 mm |
With timer: | No |
Working area Ø: | 135 mm |
