Quick delivery
MOTIC Deutschland GmbH

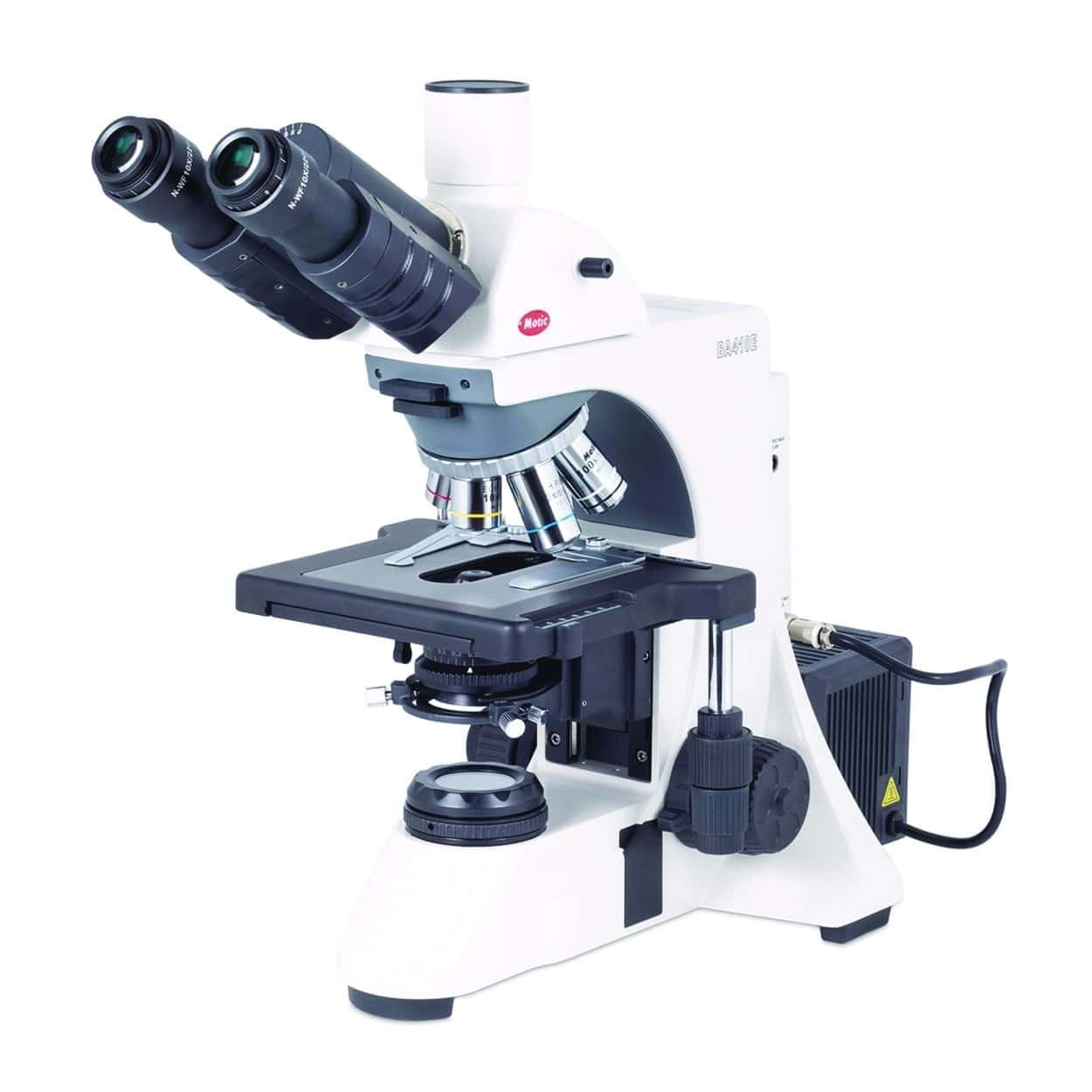

Laboratory and research microscopes BA410E Trinocular 50W
Article number: 9727052
Product information "Laboratory and research microscopes BA410E Trinocular 50W"
Professional microscope for numerous applications in biomedical research.
Observation tube Siedentopf type, 360° rotating
CCIS® EC-H Plan achromatic objectives
Wide-field eyepieces for spectacle wearers incl. eyecups
Dioptre compensation on both eyepieces
Reversed nosepiece
Mechanical stage with integrated ceramic insert and coaxial, rackless drive (right-handed operation)
Achromatic swing-out condenser with iris diaphragm
Adjustable illumination, quartz halogen according to Köhler with external lamphouse
Auto-OFF and Light Memory Function
Scope of supply: Microscope, Halogen illumination 12V/50W, Ø 45 mm blue filter, immersion oil (5 ml), power cord, Allen hexagonal key, vinyl dust cover, arm rest, spare fuse
| Condenser: | Abbe N.A. 0,90/0,13 |
|---|---|
| Depth: | 550 mm |
| Depth stage: | 170 mm |
| Dimensions (WxDxH): | 242 x 550 x 435 mm |
| Height: | 435 mm |
| Inclination angle tube: | 30° |
| Interpupillary distance: | 50 ... 75 mm |
| Light type: | Halogen |
| Magnification eyepieces: | 10x/22 mm |
| Magnification objectives: | 4x, 10x, 40x, 100x |
| Manufacturer Article Number: | 1100100402982 |
| Max. interpupillary distance: | 75 mm |
| Max. voltage: | 240 V |
| Min. interpupillary distance: | 50 mm |
| Min. voltage: | 100 V |
| Plug type: | EU |
| Power supply: | 100 ... 240 V |
| Revolving nosepiece: | 6-fold |
| Stage (WxD): | 180 x 170 mm |
| Tube: | Trinocular |
| Type: | BA410E |
| Type of auxiliary energy: | Mains connection |
| Type of illumination (Microscopy): | Transmitted illumination |
| Weight: | 14.2 kg |
| Width: | 242 mm |
| Width stage: | 180 mm |
Other customers also bought

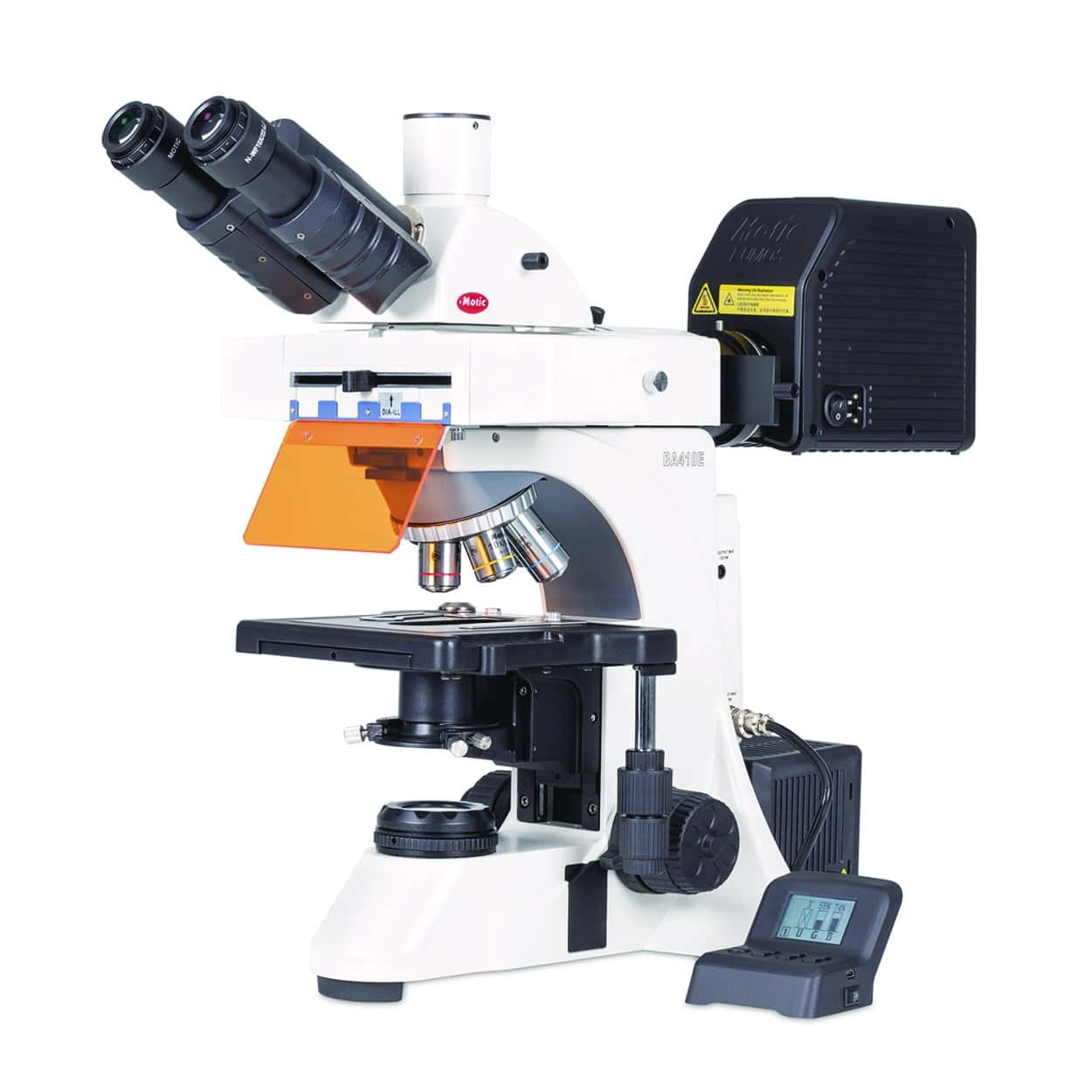

Laboratory and research microscopes BA410E LED-Fluorescence
Professional microscope for numerous applications in biomedical research.Observation tube Siedentopf type, 360° rotatingCCIS® EC-H Plan achromatic objectivesWide-field eyepieces for spectacle wearers incl. eyecupsDioptre compensation on both eyepiecesReversed nosepieceMechanical stage with integrated ceramic insert and coaxial, rackless drive (right-handed operation)Achromatic swing-out condenser with iris diaphragmAdjustable illumination, quartz halogen according to Köhler with external lamphouseAuto-OFF and Light Memory FunctionScope of supply: Microscope, complete epi-fluorescence equipment, LUMOS FL LED high-performance light source, Halogen illumination 12V/50W, blue filter (Ø 45 mm), immersion oil (5 ml), arm rest, mains cable, Allen key, dust coverPlease order fluorescence filter sets separately.
€9,995.00*

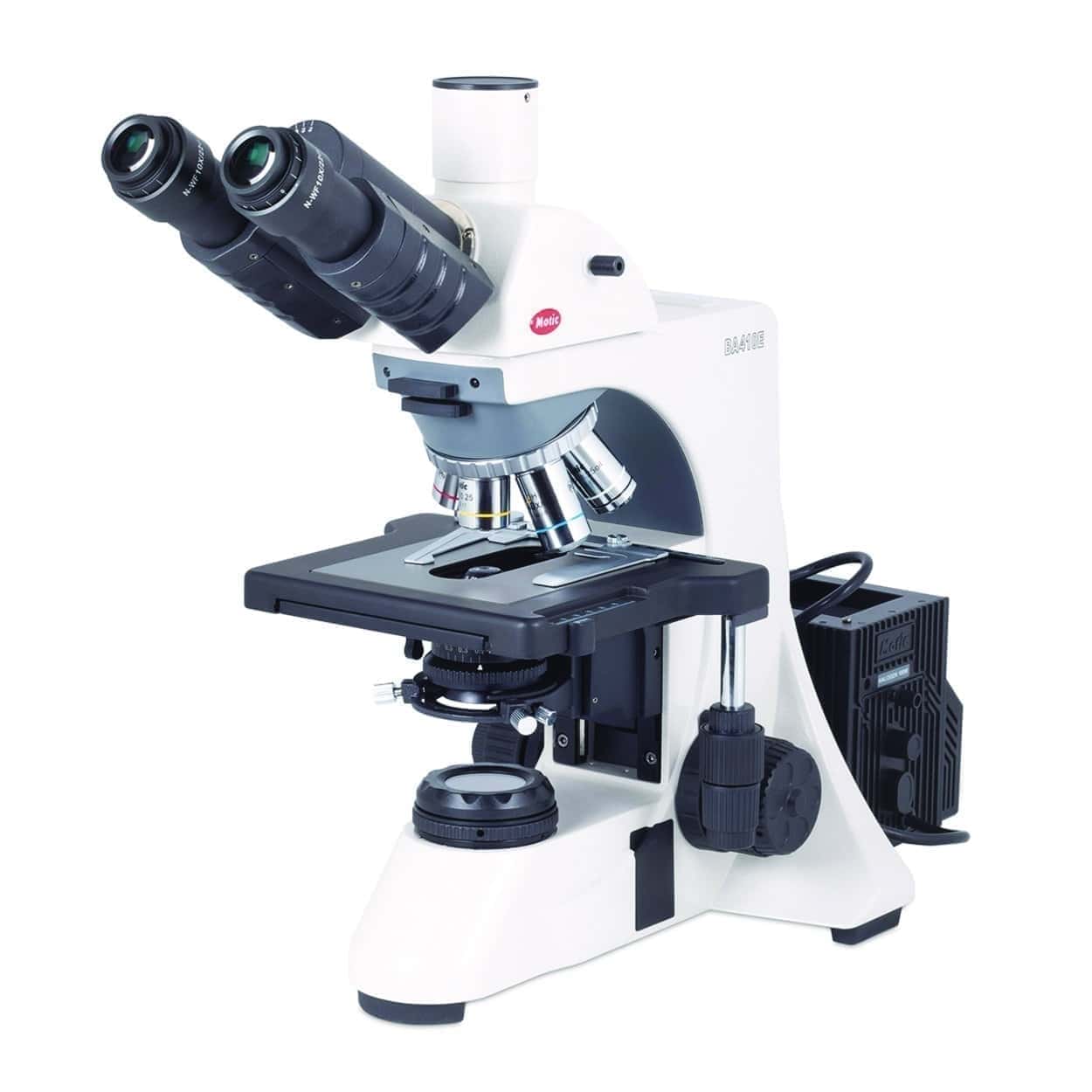

Laboratory and research microscopes BA410E Trinocular 100W
Professional microscope for numerous applications in biomedical research.Observation tube Siedentopf type, 360° rotatingCCIS® EC-H Plan achromatic objectivesWide-field eyepieces for spectacle wearers incl. eyecupsDioptre compensation on both eyepiecesReversed nosepieceMechanical stage with integrated ceramic insert and coaxial, rackless drive (right-handed operation)Achromatic swing-out condenser with iris diaphragmAdjustable illumination, quartz halogen according to Köhler with external lamphouseAuto-OFF and Light Memory FunctionScope of supply: Microscope, Halogen illumination 12V/100W, Ø 45 mm blue filter, immersion oil (5 ml), power cord, Allen hexagonal key, vinyl dust cover, arm rest, spare fuse
€4,316.00*

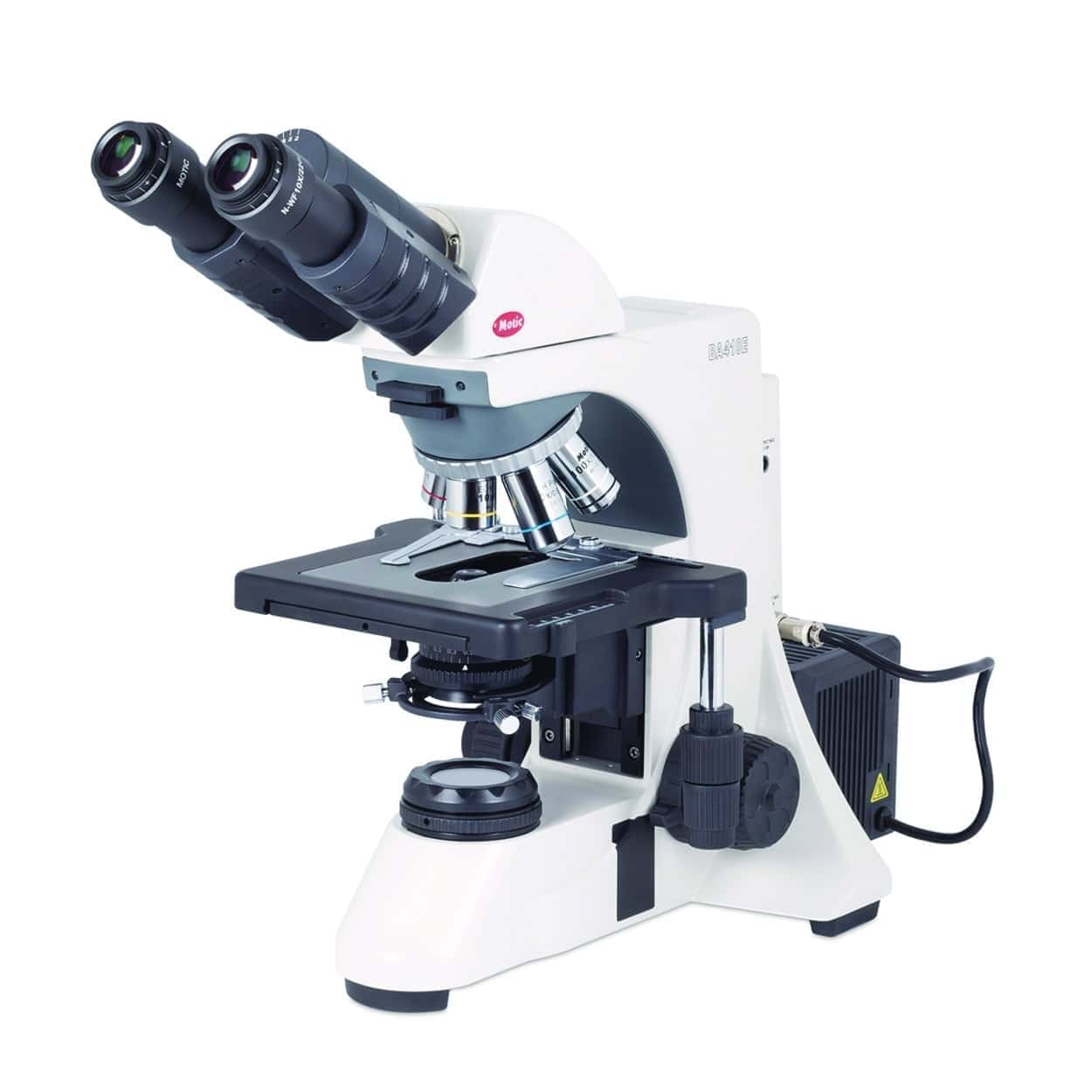

Laboratory and research microscopes BA410E Binocular 50W
Professional microscope for numerous applications in biomedical research.Observation tube Siedentopf type, 360° rotatingCCIS® EC-H Plan achromatic objectivesWide-field eyepieces for spectacle wearers incl. eyecupsDioptre compensation on both eyepiecesReversed nosepieceMechanical stage with integrated ceramic insert and coaxial, rackless drive (right-handed operation)Achromatic swing-out condenser with iris diaphragmAdjustable illumination, quartz halogen according to Köhler with external lamphouseAuto-OFF and Light Memory FunctionScope of supply: Microscope, Halogen illumination 12V/50W, Ø 45 mm blue filter, immersion oil (5 ml), power cord, Allen hexagonal key, vinyl dust cover, arm rest, spare fuse
€3,571.00*

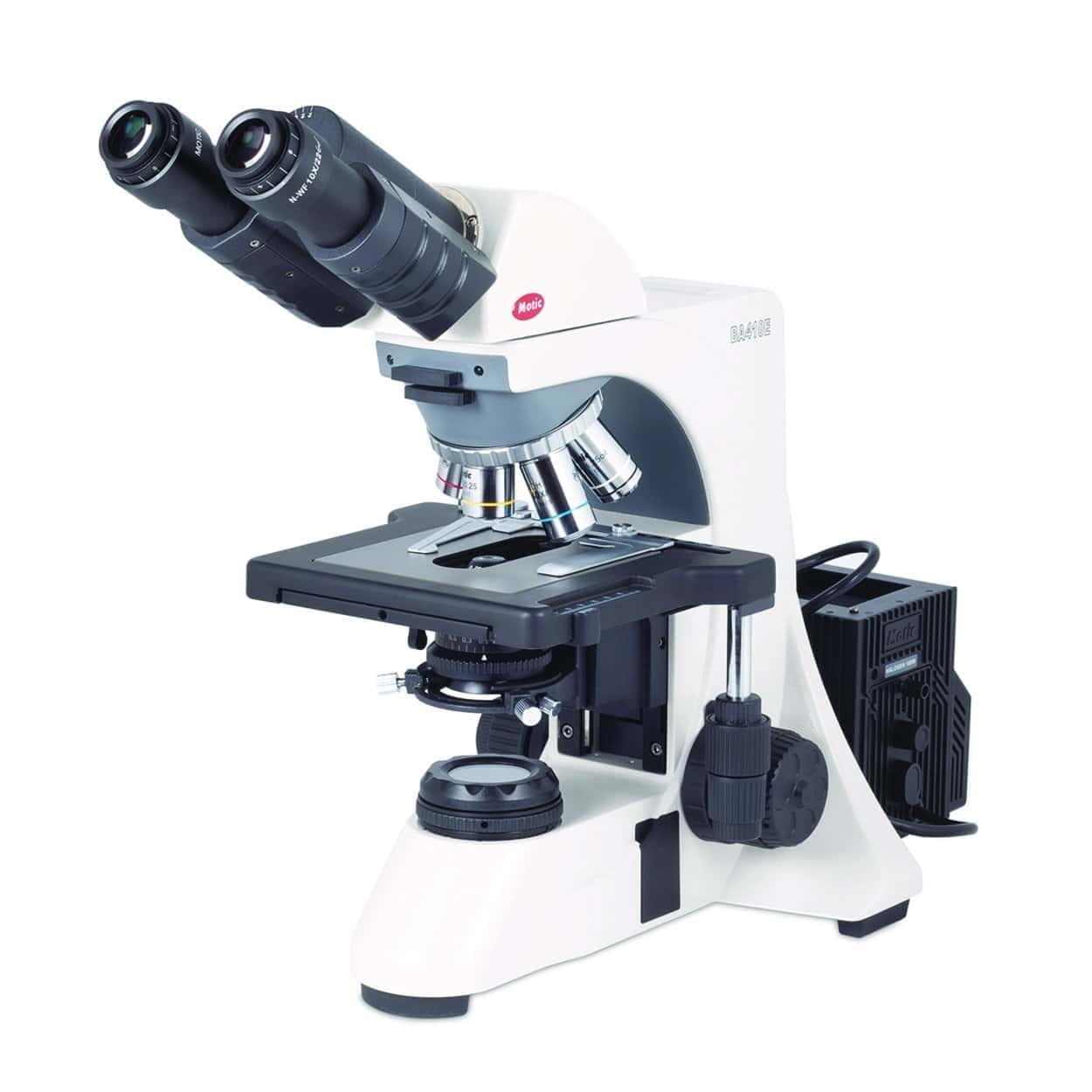

Laboratory and research microscopes BA410E Binocular 100W
