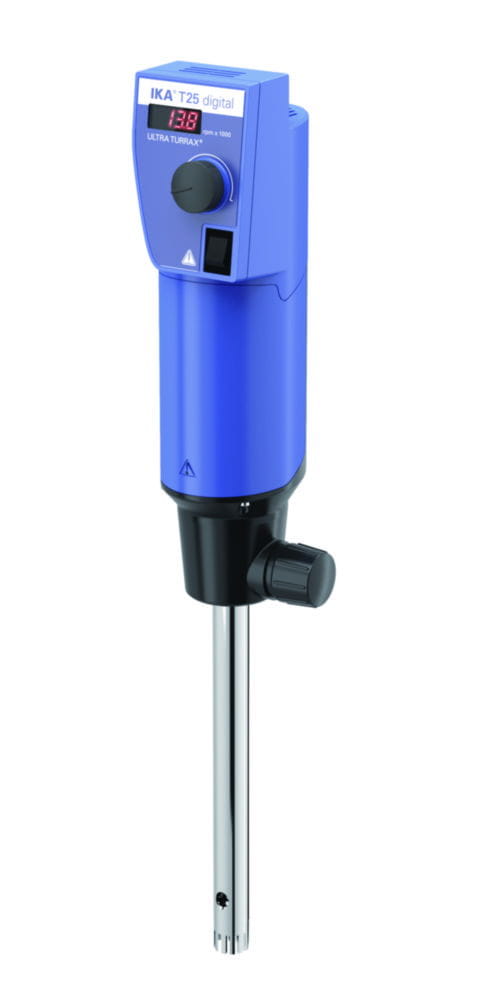

Homogeniser T 25 digital ULTRA-TURRAX®
Article number: 9570949
Product information "Homogeniser T 25 digital ULTRA-TURRAX®"
High-performance dispersing instrument for volumes from 1 to 2000ml (H2O) with digital speed display. It offers a wide speed range from 3000 to 25000rpm that enables users to work at high circumferential speeds even with small rotor diameters. A broad choice of dispersing elements adds versatility. Applications ranges from homogenizing waste water samples, use in laboratory reactors, dispersion tasks under vacuum / pressure and sample preparation in medical diagnostics.
Dispersing heads must be ordered separately.
- Digital speed display
- Electronic speed control
- Electronic overload protection
- Stainless steel dispersing elements can be cleaned quickly and easily
- Plastic disposable dispersing elements are available in two sizes
- Error code display
- Quiet operation
Dispersing heads must be ordered separately.
| Specifications | |
| Motor rating input / output: | 800 / 500W |
| Working volume range (H2O): | 1 ... 2000ml |
| Viscosity max.: | 5000mPas |
| Speed range: | 3000 ... 25000 rpm |
| Speed display: | LED |
| Speed control: | stepless |
| Noise without element: | 75dB(A) |
| Extension arm diam. / length: | 13mm / 160mm |
| Dimensions (W x D x H): | 87 x 106 x 271mm |
| Weight: | 2.5kg |
| Power supply: | 200-400 V, 50/60Hz |
| Protection class DIN EN 60529: | IP 20 |
| Depth mm: | 106 |
|---|---|
| Dimensions (W x D x H) mm: | 87 x 106 x 271 |
| Dual Use: | 0 |
| Height mm: | 271 |
| Manufacturer Article Number: | 0003725000 |
| Max. speed rpm: | 25000 |
| Max. volume dB(A): | 75 |
| Min. speed rpm: | 3000 |
| Motor rating output W: | 500 |
| Plug type: | EU |
| Protection class: | IP20 |
| Rated capacity W: | 700 |
| Type: | T 25 digital ULTRA-TURRAX® |
| Type of auxiliary energy: | 115/230, 50-60 Hz |
| Weight kg: | 2.5 |
| Width mm: | 87 |
| max. Runtime / timer Hr: min: sec: | - |
| max. Viscosity mPa.: | 5000 |
| max. Workspace volume ml: | 2000 |
| min. Runtime / timer Hr: min: sec: | - |
| min. Workspace volume ml: | 1 |
Accessories
Plate stands for overhead stirrers and Dispersers T 18 and T 25
Plate stands with slip resistant foil. Max. load 5 kg.
€348.00*

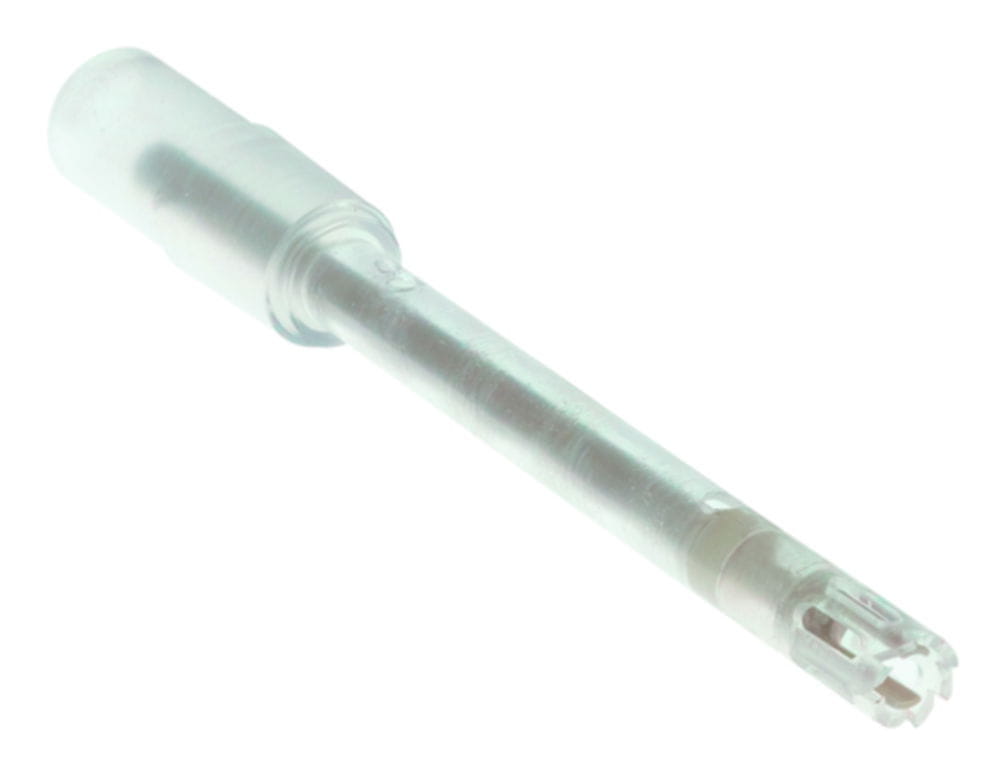

Dispersing heads for T25 basic Ultra-Turrax®
Plastic dispersing heads: Autoclavable. Stainless steel dispersing heads: Ultimate fineness: emulsions 1µm to 10µm and suspensions 5µm to 50µm, sterilisable by all methods. ST tools are recommended for use with tissue and other fibrous materials.Further dispersing heads are available on request.
€328.00*
