BINDER GmbH
Drying and heating chambers FD Avantgarde.Line
Article number: 4658060
Product information "Drying and heating chambers FD Avantgarde.Line"
Drying and heating chambers are suitable for routine drying and sterilisation tasks with homogeneous temperature distribution.
- High temperature accuracy thanks to APT.line™ technology
- Electromechanical control of the exhaust air flap
- Chambers up to 115 l are stackable
- Ergonomic handle design
- USB connection for data recording
- Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
- With forced convection
- Controller with LCD display
| Depth int.: | 385 mm |
|---|---|
| Ext. depth: | 605 mm |
| Ext. height: | 735 mm |
| Ext. width: | 710 mm |
| External dimensions (WxDxH): | 710 x 605 x 735 mm |
| Height int.: | 550 mm |
| IP code: | IP 20 |
| Int. width: | 550 mm |
| Internal dimensions (WxDxH): | 550 x 385 x 550 mm |
| Manufacturer Article Number: | 9010-0305 |
| Material interior: | Stainless steel 1.4301 |
| Max. no. of inserts: | 5 |
| Max. temperature: | 300 °C |
| Max. voltage: | 230 V |
| Min. temperature: | +10 °C |
| Nominal capacity: | 116 l |
| Plug type: | EU |
| Power supply: | 230 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Rated capacity: | 1300 W |
| Temperature: | RT+10 ... 300 °C |
| Temperature addition: | RT |
| Type: | FD 115 |
| Type of auxiliary energy: | Mains connection |
| UNSPSC: | 41104510 |
| Weight: | 57 kg |
| With timer: | Yes |
Other customers also bought
Drying and heating chambers FD Classic.Line
Drying and heating chambers are suitable for routine drying and sterilisation tasks with homogeneous temperature distribution.Uniform drying conditions thanks to APT.line™ preheating chamber technologyIdentical test conditions throughout the chamber interior independent of sample size and quantityAdjustable exhaust air flapClass 2 independent adjustable temperature safety device (DIN 12880) with visual alarmWith forced convectionController with timer functions
€2,238.00*

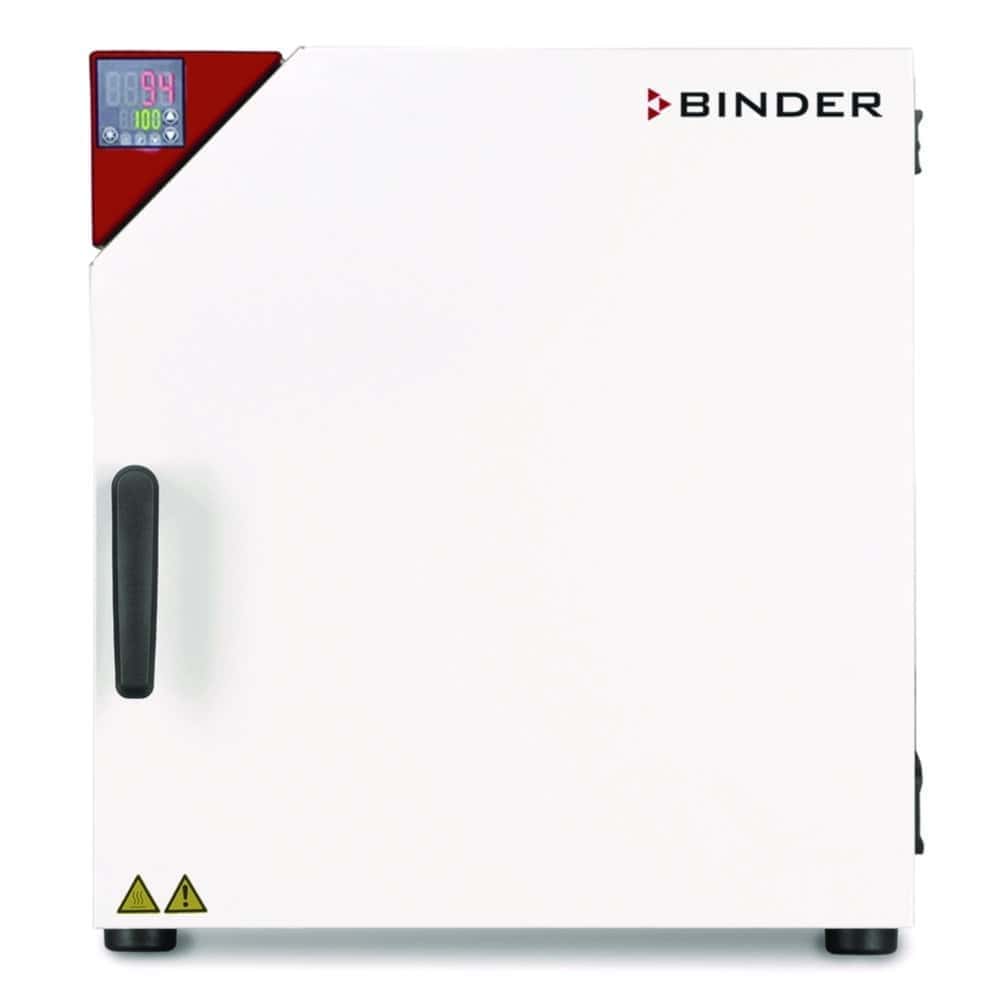

Drying and heating chambers FD-S Solid.Line
