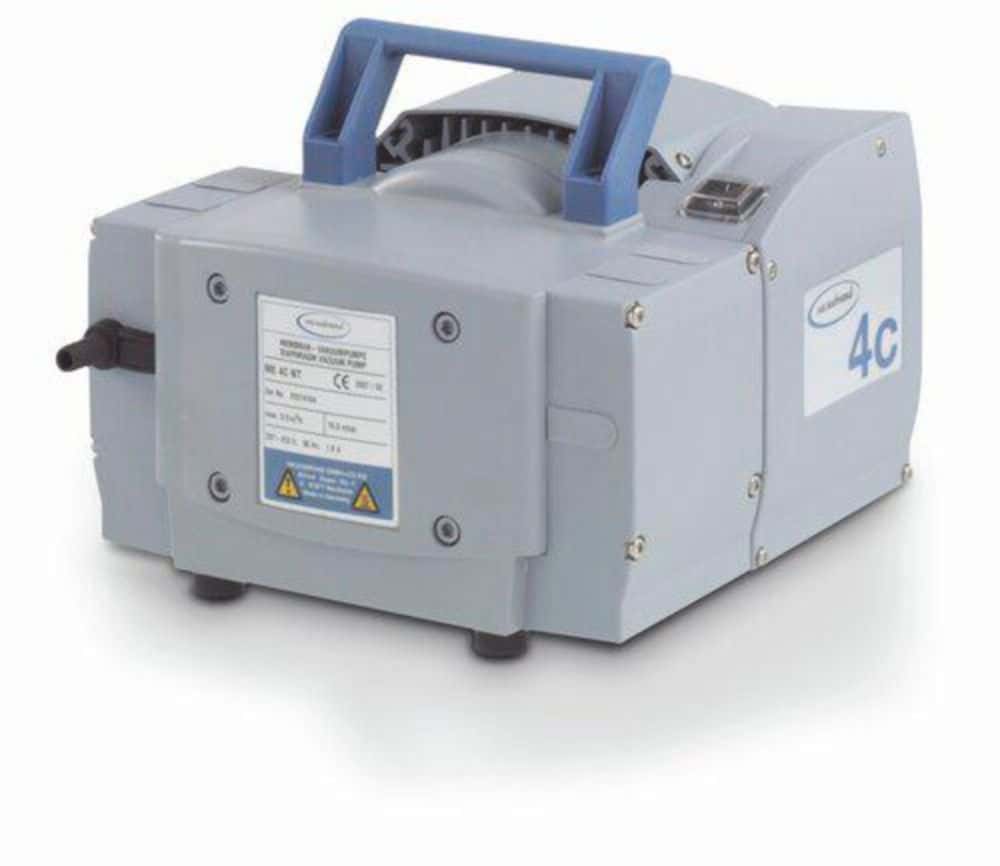

Diaphragm vacuum pumps -NT Series, Chemistry design
Article number: 4670425
Product information "Diaphragm vacuum pumps -NT Series, Chemistry design"
- Improved performance, increased pumping speed and lower ultimate vacuum extends applications in both the laboratory and in industrial applications
- Long-life diaphragm with PTFE sandwich construction and unstressed diaphragm support
- Easy service/exchange of diaphragm or valves due to novel integrated valve head assembly. Easy dismantling, cleaning and reassembly without requiring readjustment
- Very quiet and ultra low vibration due to compact drive with patented motor control system. Ideal as a built-in component for sensitive equipment in both the laboratory and in industry
- Superior vapour tolerance due to integral tubing connections and gas ballast valve for continuous purge (for ME 16C NT, MZ 2C NT, MD 4C / 12C NT and MV 10C NT)
- Easy to clean due to smooth exterior surfaces
The VARIO® design provides vacuum control by precise and continuous adaption of the chemistry diaphragm pumps motor speed, and includes the vacuum pump, as well as the VACUU·SELECT controller.
Diaphragm pump MD 4CRL NT with reduced leakage rate (0.001 mbar x l/s).
Country-specific power cord versions available on request.
Connector: | UK |
---|---|
Dimensions (W x D x H) mm: | 243 x 254 x 198 |
Manufacturer Article Number: | 20731202 |
Number of steps: | 1 |
Type: | ME 4C NT |
Ultimate vacuum without / with gas ballast mbar (abs.): | 70 |
max. discharge flow m³ / hr.: | 3.9 / 4.3 |
